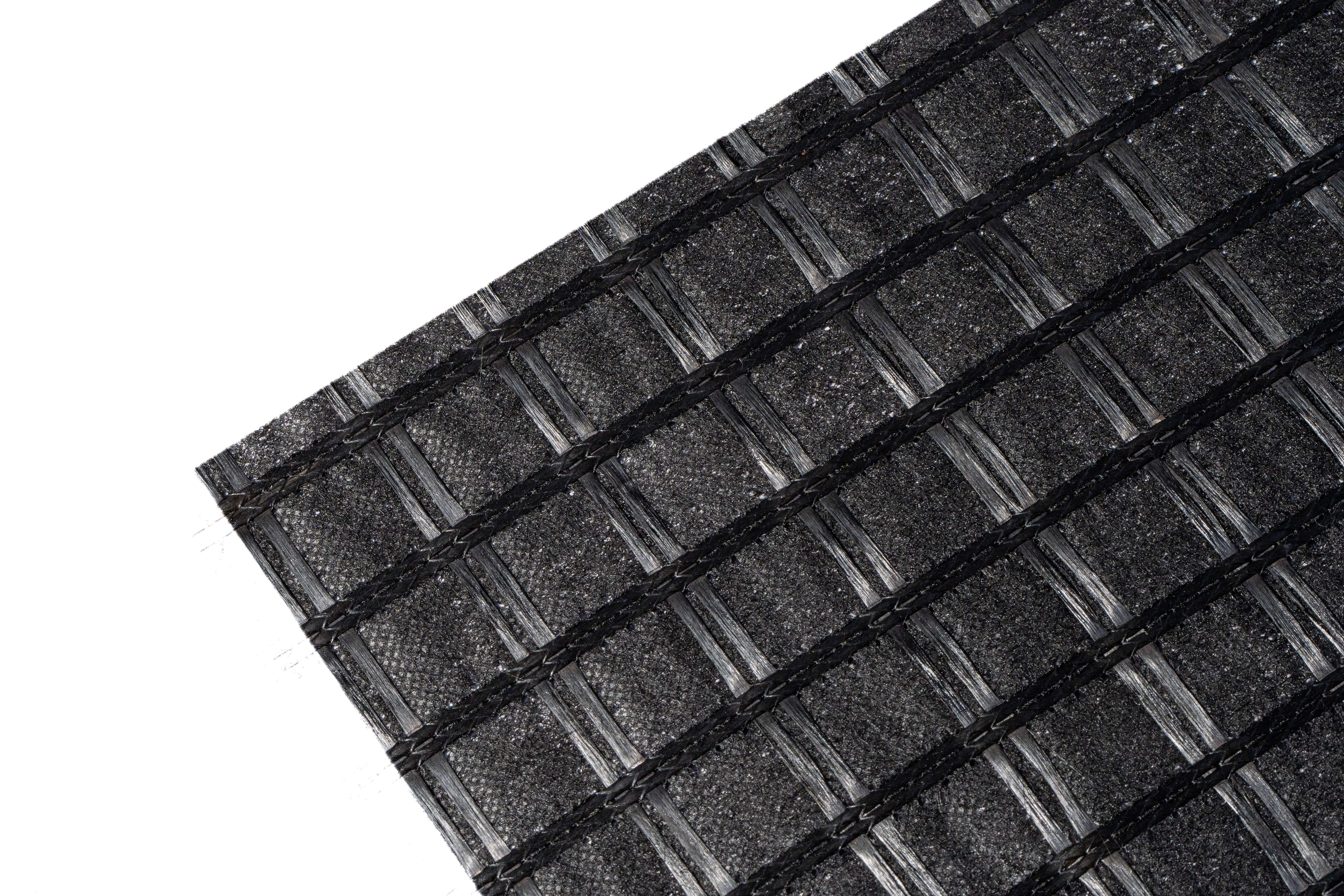

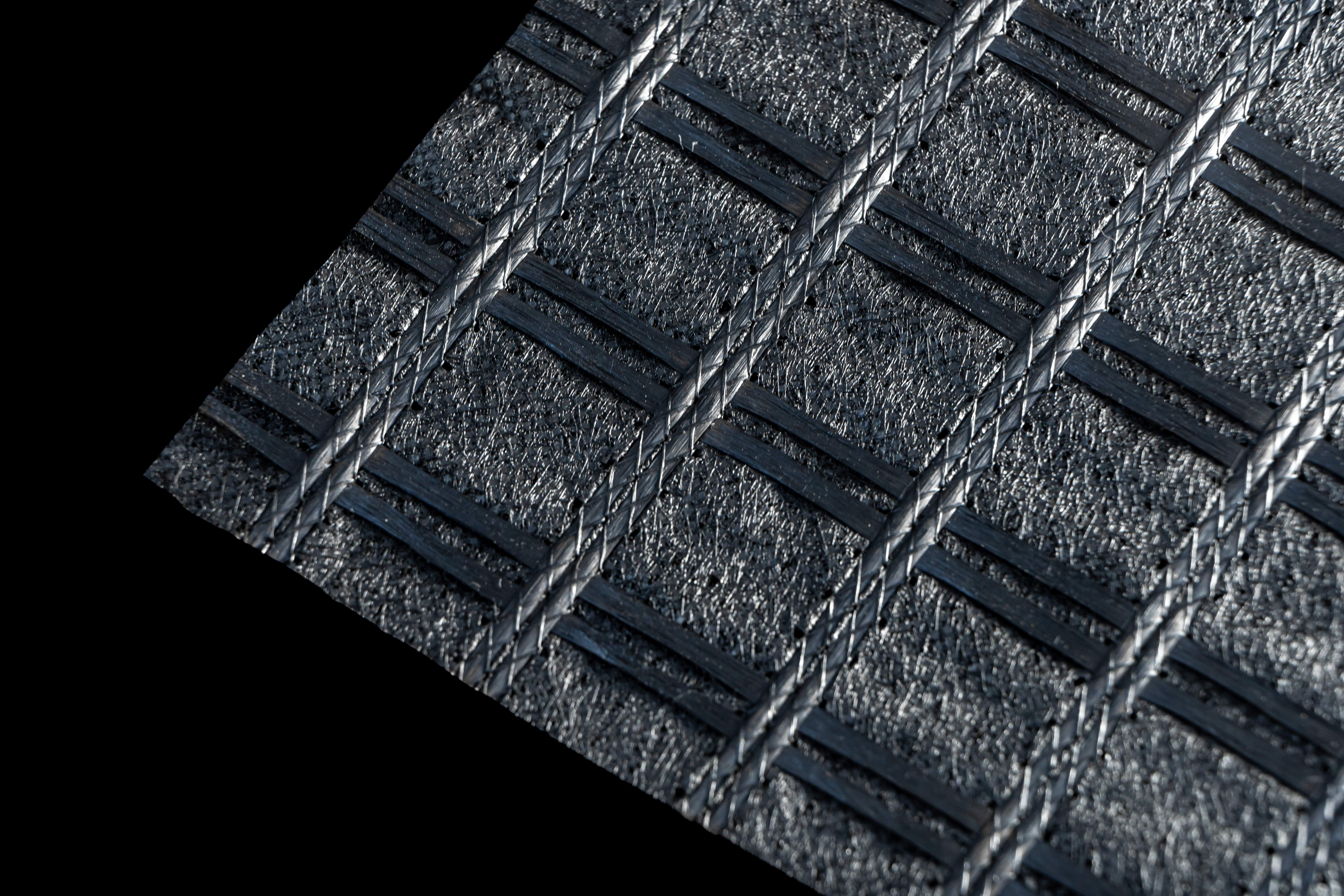

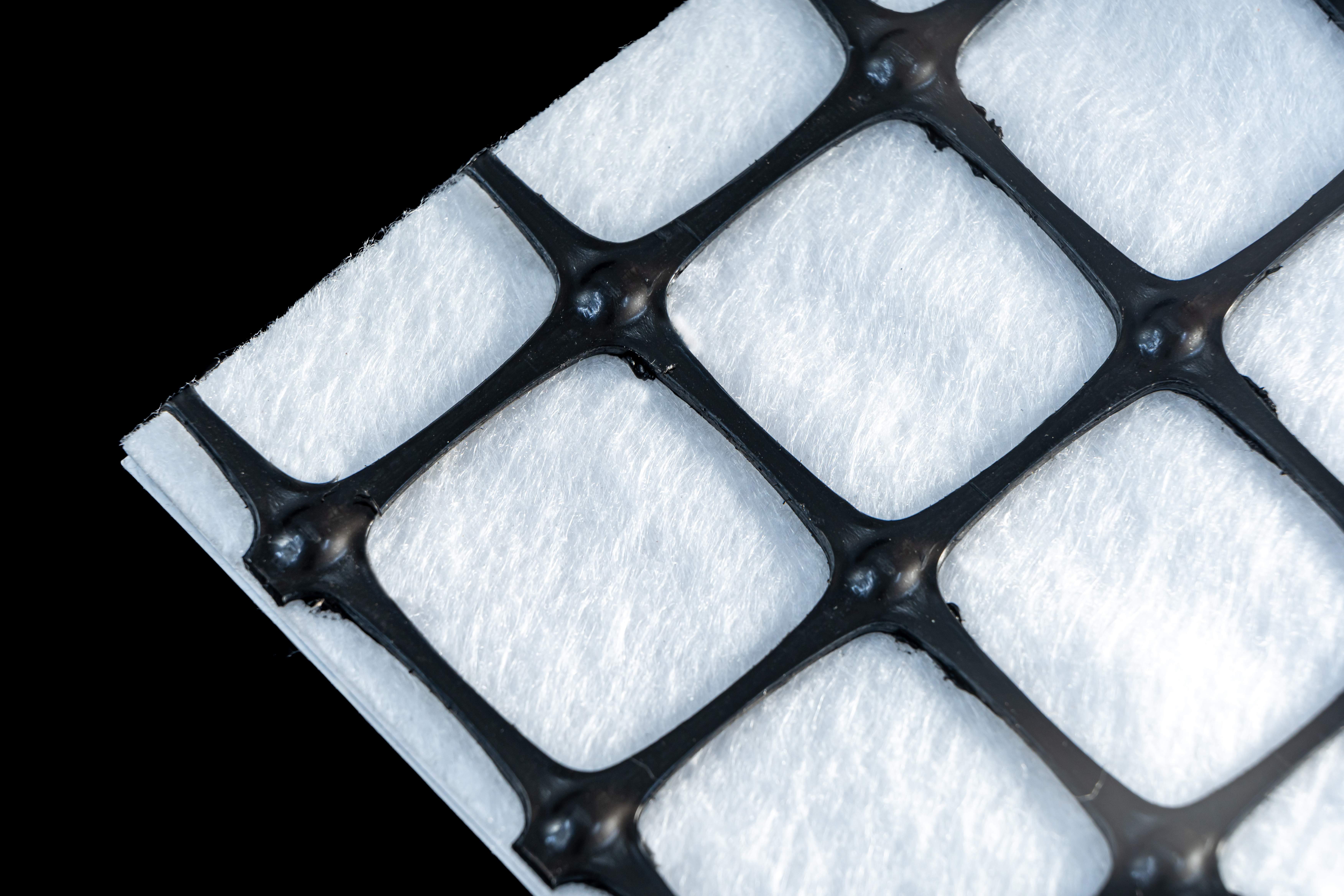

Product Description

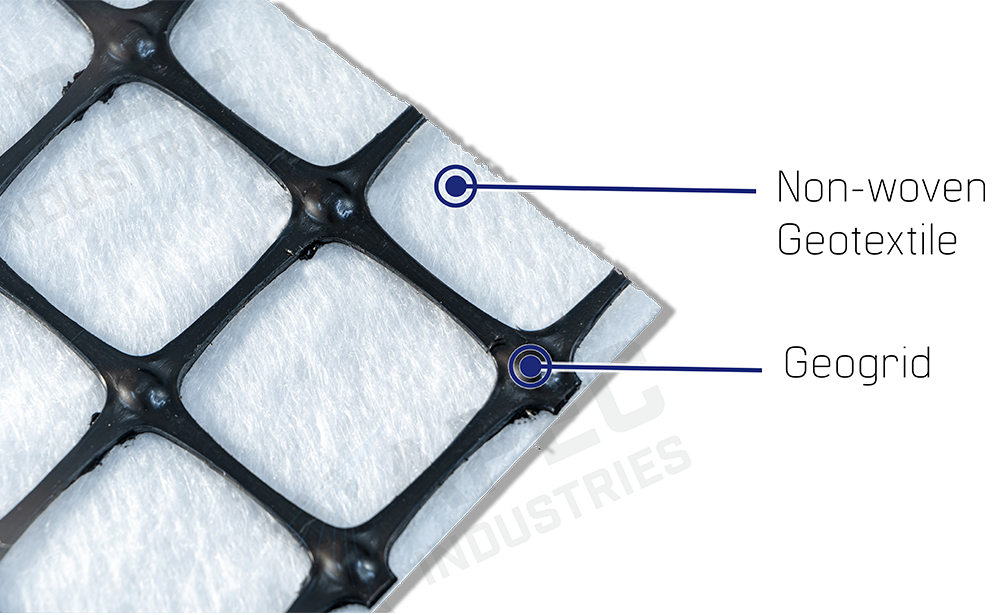

GRIDTEXTILE® is an advanced geogrid composite engineered to provide reliable soil reinforcement and stabilization across a wide range of civil engineering applications. Designed to improve load-bearing capacity and distribute stresses efficiently, it enhances the performance of weak subgrades, slopes, embankments, and foundations. By combining the geogrid's tensile strength and aggregate interlocking capabilities with the geotextile's filtration and separation functions, it creates a system that provides lateral restraint to the aggregates, preventing displacement, enhancing stability and load-distribution. GRIDTEXTILE® improves the soil’s shear resistance, reduces settlement, and extends the service life of pavements, unpaved roads, slopes and embankments, reinforced soil walls, etc.

Inquire Now

Product Benefits

 Significantly improves load-bearing capacity of soils and pavements

 Reduces material requirements by optimizing aggregate thickness

Combines separation, filtration, and reinforcement in a single layer

 Provides strong interlock and confinement of aggregates and ballast

 Highly resistant to abrasion, UV, chemicals and degradation.

 Extends the service life of flexible pavements and track beds

Minimizes differential settlement and rutting.

Ensures consistent, reliable performance with factory-controlled quality.

Lightweight, flexible, and easy to install.

Cuts construction time and labor costs with faster installation.

Delivers long-term structural stability under dynamic and static loads.

Product Function

Reinforcement
Reinforcement
Separation
Separation

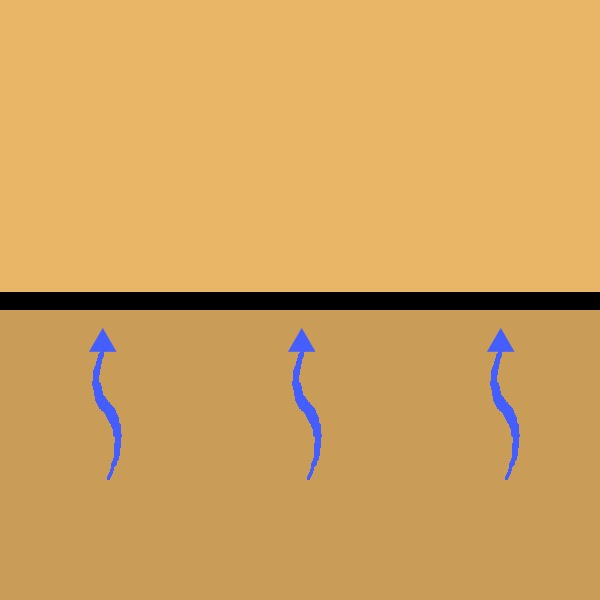

Filtration
Filtration

Common Applications

  • Differential settlement control in weak subgrades
  • Base and subgrade stabilization for roads, highways, and very soft soils
  • Reduction of aggregate base and sub-base thickness in pavements
  • Railway ballast reinforcement and stabilization
  • Basal reinforcement of embankments over soft sabkha soils
  • Engineered backfill stabilization for retaining structures
  • Stabilization of load transfer platforms over piles and temporary crane working platforms
  • Reinforcement of slopes, retaining walls, and foundations
  • Ground support for access roads, car parks, and airport runways
  • Cut-off trenches and utility pipeline support
  • Soil Reinforcement in MSE Walls.

What makes GRIDTEXTILE ® better than separate geotextile and geogrid layers?

Saltstop Illustration 1

Basic Product Specifications

Properties of Geocomposite Unit ST
Max. Tensile Strength (MD/CMD) kN/m 20/20, 30/30, 40/40
Tensile Strength @ 2% strain kN/m 7/7, 10.5/10.5, 14/14
Tensile Strength @ 5% strain kN/m 14/14, 21/21, 28/28
Elongation at max. strength MD/CMD 11% / 11% (min)
Flexural Rigidity mg-cm 700,000, 2,000,000, >5,000,000
Roll Width 4.0 m
Roll Length 50, 75 and 100 m
Roll Weight min – max 75 – 270 kg
